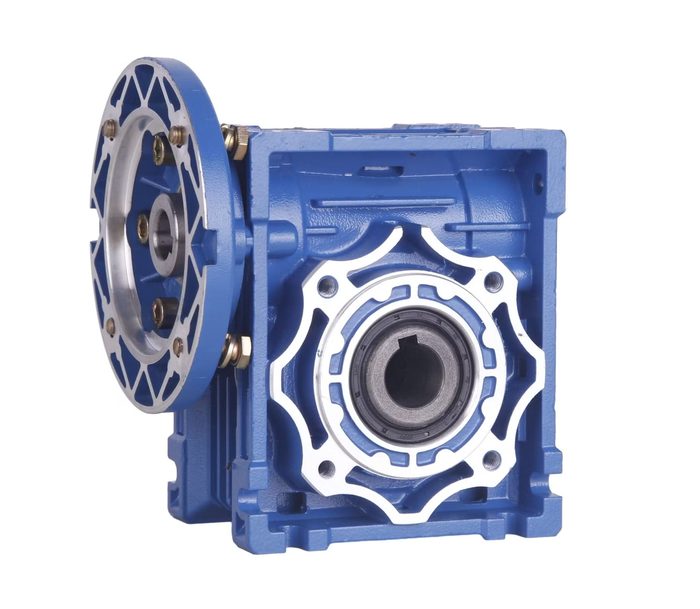

Worm Gear Speed Reducer

Aluminum Gears

This worm gear speed reducer has a 1.97 inch center distance. With an input speed of 1750 rpm and a 100:1 nominal ratio, it produces an output speed of 18 rpm. This component is used to reduce rotational speed and increase torque in a system.

Specifications

Bore Diameter	1 inch
Bore Type	Hollow
Finish	Blue
Frame Size	56C
Input Speed	1750 rpm
Output Speed	18 rpm
Ratio	100:1
Shaft Orientation	Right Angle
Worm Center Distance	1.97 inch

About gears

Worm Gear Speed Reducer is listed under Gears, spur, helical, bevel, worm and internal gears plus racks. Gears transmit rotary motion and torque between shafts, or convert rotary motion into linear motion. This category encompasses a range of gear types, including spur, helical, bevel, worm, and internal gears, as well as racks.
